Wallbox Pro

Choose a variant

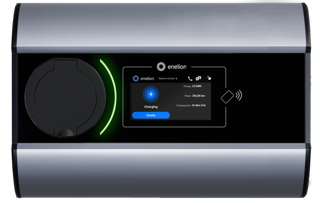

ENELION WALLBOX PRO Socket Silver
Socket

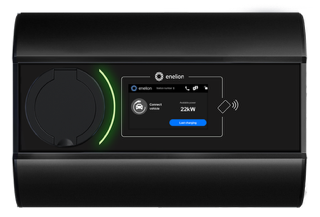

ENELION WALLBOX PRO Socket Black
Socket

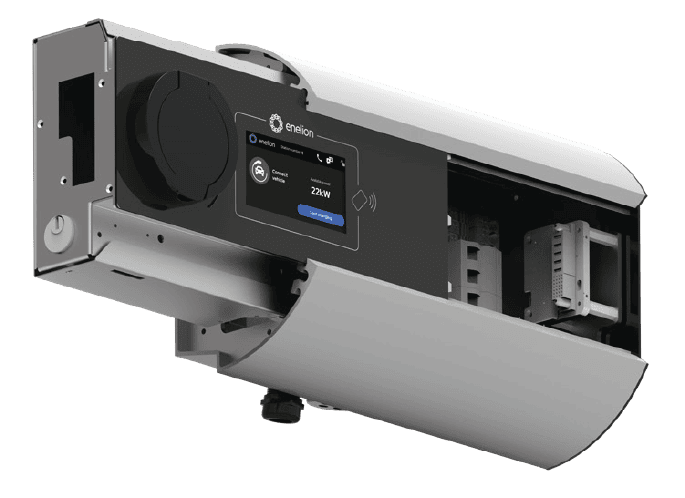

ENELION WALLBOX PRO specification
Basic information
Housing
Durable, corrosion-resistant aluminum housing with powder coating (RAL palette)
Power supply type
AC
Connector type
Type 2 socket
Socket/ plug
socket (Type 2) with lock
width 360mm
Charging current / power
1,4 kW — 22 kW
Height
250 mm
Width
710 mm
Depth
145 mm
Connections
Communication protocols
OCPP 1.6 JSON (ready for OCPP 2.0.1*), CANbus, Modbus
LCD display
4.3”, touch, color
Network device capable
TN-S, TN-C-S, TN-C, TT, IT; 400 V (3 × 230 V)
Parameters
Energy meter
3-phase energy meter with >99% reading accuracy, compatible with a certified MID meter
Degree of impermeability
IP 54
Impact protection degree
IK 10
Residual current protection
RCMB / RCDA / RCDB / RCBO / MCB
Load balancing
Static Load Balancing (offline; FW-based)
Dynamic Load Balancing (+ Enelion EEG 3.0*)
Operating temperature
-25°C / +55°C
Product sheet
ENELION WALLBOX PRO specification
Basic information
Housing
Durable, corrosion-resistant aluminum housing with powder coating (RAL palette)
Power supply type
AC
Connector type
Type 2 socket
Socket/ plug
socket (Type 2) with lock

width 360mm
Charging current / power
1,4 kW — 22 kW
Height
250 mm
Width
710 mm
Depth
145 mm
Connections
Communication protocols
OCPP 1.6 JSON (ready for OCPP 2.0.1*), CANbus, Modbus
LCD display
4.3”, touch, color
Network device capable
TN-S, TN-C-S, TN-C, TT, IT; 400 V (3 × 230 V)
Parameters
Energy meter MID
3-phase energy meter with >99% reading accuracy, compatible with a certified MID meter
Degree of impermeability
IP 54
Impact protection degree
IK 10
Residual current protection
RCMB / RCDA / RCDB / RCBO / MCB
Load balancing
Static Load Balancing (offline; FW-based)
Dynamic Load Balancing (+ Enelion EEG 3.0*)
Operating temperature
-25°C / +55°C
Product sheet
Useful files
ENELION WALLBOX PRO
Product Sheet
12.08.2026
Download
ENELION WALLBOX PRO
User Manual
12.08.2026
Download
ENELION WALLBOX PRO
REACH Declaration of Conformity
12.08.2026
Download
