Everything,
you need
to hit the road
with a full battery

Configurable for new requirements
Timelessly versatile ENELION WALLBOX
Designed
for every challenge
ENELION WALLLBOX

The ENELION WALLBOX is one of the most versatile chargers in the Enelion range. The solutions used in it allow the charger to be reconfigured if necessary. The charging power can be continuously adjusted in the range from 1.4 kW to 22 kW. The ENELION WALLBOX can also be equipped with the Enelion Bridge, which provides OCPP 1.6 functionality.

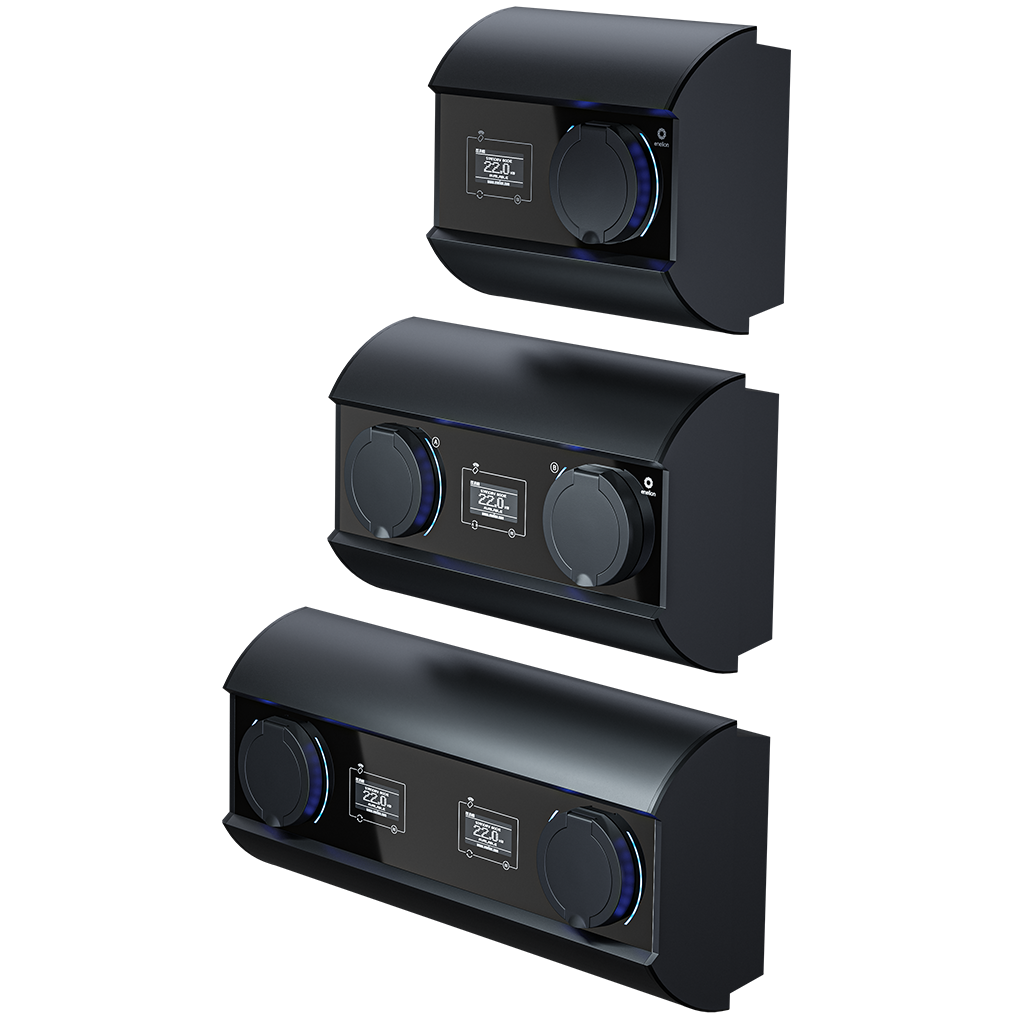

Three versions of the charger are available: the single-slot ENELION WALLBOX, the two-slot ENELION WALLBOX DUO and the two-slot ENELION WALLBOX DUO POWER with increased power. Each of them comes in two colours: silver and black.

Distinctive features
Reliable structure
Wide communication range
Dynamic building power balance

Up to 90 chargers can be managed on one network using the Enelion software. The WALLBOX is equipped with a WiFi/Ethernet communication module, optional LTE/GSM modem and RFID card reader. Dynamic Load Balancing (DLB), an intelligent charging power limitation system, will share the charging power between chargers so the total charging power does not exceed the power in the network. With Enelion Bridge, you can further extend the capabilities of the charger with remote control.

The ENELION WALLBOX allows for easy installation in a convenient location in a garage hall. It is possible to comprehensively manage the network of chargers via the Enelion administration system. It is also possible to integrate it with a parking payment system. The robust construction made of anodised aluminium enables long-lasting use in public-access charging stations.

The dynamic balance of power between the charger and the home, the aesthetic appearance, the robust design, the possibility to choose the colour, the convenient OLED display ensuring the legibility of all data from the device, makes the ENELION WALLBOX (in any variant) the ideal solution for the home.

It is possible to easily manage a network of chargers via the Enelion administration system. On the other hand, the highly durable, solid construction made of anodised aluminium allows for efficient operation in conditions of intensive use.

Each charger in the ENELION WALLBOX family allows for easy installation and is characterised by its high versatility and robustness. An advantage is the case made of anodised aluminium available in two colours: silver and black, and the OLED display ensures readability of all data from the device. Further supplementing the offer with the ENELION WALLBOX DUO and ENELION DUO POWER versions — two-slot charging points — increases the universality and attractiveness of this charger on the market.

Choose a variant
ENELION WALLBOX
black anodised aluminium
ENELION WALLBOX
silver anodised aluminium
ENELION WALLBOX DUO
black anodised aluminium
ENELION WALLBOX DUO
silver anodised aluminium
ENELION WALLBOX
DUO POWER
black anodised aluminium
ENELION WALLBOX
DUO POWER
silver anodised aluminium
ENELION WALLBOX specification
Basic information
Housing
Anodised aluminium / silver / black
Power supply type
AC
Connector type
Type 2 socket
Socket lock
Built-in
Charging current / power
1.4 kW — 22 kW
Height
271 mm
Width
249 mm
Depth
156 mm
Connections
OCPP protocol
Offline / WiFi, Ethernet, LTE (GSM) requires Bridge module
User Interface
OLED graphic display / RFID / 2 buttons
Network device capable
Built-in – Enelion Chain
Parameters
Electricity meter
Integrated 3-phase energy meter
Energy meter MID
Additionally paid — integrated in the device
Degree of impermeability
IP 54
Impact protection degree
IK 10
Residual current protection
RCM B (optional)
Dynamic load balancing (DLB)
Enelion DLB (optional)
Operating temperature
-25°C / +55°C
Product sheet
If you need help, please go to support
ENELION WALLBOX specification
Basic information
Housing
Anodised aluminium / silver / black
Power supply type
AC
Connector type
Type 2 socket
Socket lock
Built-in
Charging current / power
1.4 kW — 22 kW
Height
271 mm
Width
249 mm
Depth
156 mm
Connections
OCPP protocol
Offline / WiFi, Ethernet, LTE (GSM) requires Bridge module
User Interface
OLED graphic display / RFID / 2 buttons
Network device capable
Built-in – Enelion Chain
Parameters
Electricity meter
Integrated 3-phase energy meter
Energy meter MID
Additionally paid — integrated in the device
Degree of impermeability
IP 54
Impact protection degree
IK 10
Residual current protection
RCM B (optional)
Dynamic load balancing (DLB)
Enelion DLB (optional)
Operating temperature
-25°C / +55°C
Product sheet
If you need help, please go to support
ENELION WALLBOX DUO specification
Basic information
Housing
Anodised aluminium / silver / black
Power supply type
AC
Connector type
2 x Type 2 socket
Socket lock
Built-in
Charging current / power
2 x 1.4 kW — 7.4 kW
Height
250 mm
Width
390 mm
Depth
150 mm
Connections
OCPP protocol
Offline / WiFi, Ethernet, LTE (GSM) requires Bridge module
User Interface
OLED graphic display / RFID / push buttons
Network device capable
Built-in – Enelion Chain
Parameters
Electricity meter
Integrated 3-phase energy meter
Energy meter MID
Additionally paid — integrated in the device
Degree of impermeability
IP 54
Impact protection degree
IK 10
Residual current protection
RCM B / RCD A / RCD B (optional)
Dynamic load balancing (DLB)
Enelion DLB (optional)
Operating temperature
-25°C / +55°C
Product sheet
If you need help, please go to support
ENELION WALLBOX DUO specification
Basic information
Housing
Anodised aluminium / silver / black
Power supply type
AC
Connector type
2 x Type 2 socket
Socket lock
Built-in
Charging current / power
2 x 1.4 kW — 7.4 kW
Height
250 mm
Width
390 mm
Depth
150 mm
Connections
OCPP protocol
Offline / WiFi, Ethernet, LTE (GSM) requires Bridge module
User Interface
OLED graphic display / RFID / push buttons
Network device capable
Built-in – Enelion Chain
Parameters
Electricity meter
Integrated 3-phase energy meter
Energy meter MID
Additionally paid — integrated in the device
Degree of impermeability
IP 54
Impact protection degree
IK 10
Residual current protection
RCM B / RCD A / RCD B (optional)
Dynamic load balancing (DLB)
Enelion DLB (optional)
Operating temperature
-25°C / +55°C
Product sheet
If you need help, please go to support
ENELION WALLBOX DUO POWER specification
Basic information
Housing
Anodised aluminium / silver / black
Power supply type
AC
Connector type
2 x Type 2 socket
Socket lock
Built-in
Charging current / power
2 x 1.4 kW — 22 kW
Height
250 mm
Width
530 mm
Depth
150 mm
Connections
OCPP protocol
Offline / WiFi, Ethernet, LTE (GSM) requires Bridge module
User Interface
OLED graphic display / RFID / push buttons
Network device capable
Built-in – Enelion Chain
Parameters
Electricity meter
Integrated 3-phase energy meter
Energy meter MID
Additionally paid — integrated in the device
Degree of impermeability
IP 54
Impact protection degree
IK 10
Residual current protection
RCM B / RCD A / RCD B (optional)
Dynamic load balancing (DLB)
Enelion DLB (optional)
Operating temperature
-25°C / +55°C
Product sheet
If you need help, please go to support
ENELION WALLBOX DUO POWER specification
Basic information
Housing
Anodised aluminium / silver / black
Power supply type
AC
Connector type
2 x Type 2 socket
Socket lock
Built-in
Charging current / power
2 x 1.4 kW — 22 kW
Height
250 mm
Width
530 mm
Depth
150 mm
Connections
OCPP protocol
Offline / WiFi, Ethernet, LTE (GSM) requires Bridge module
User Interface
OLED graphic display / RFID / push buttons
Network device capable
Built-in – Enelion Chain
Parameters
Electricity meter
Integrated 3-phase energy meter
Energy meter MID
Additionally paid — integrated in the device
Degree of impermeability
IP 54
Impact protection degree
IK 10
Residual current protection
RCM B / RCD A / RCD B (optional)
Dynamic load balancing (DLB)
Enelion DLB (optional)
Operating temperature
-25°C / +55°C
Product sheet
If you need help, please go to support
Chargers comparison
Chargers comparison
Type2 socket
i
Type2 connector
i
Ethernet connection
i
WiFi / LTE Connection
i
Display unit
i
Fully adjustable charging power
i
Application
i
Dynamic load balancing
i
Two sockets
i
Freestanding
i
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Optional
