ENELION WALLOX DUO PRO
Safety, Durability, and Reliability

Double charging station in a single, modular enclosure

Elegant and timeless design

Wallbox Duo Pro
Designed with the most
demanding customers
in mind

ENELION WALLBOX
DUO PRO

Created with CPO operators in mind, as well as all public, commercial, and multi-residential electric vehicle charging networks.

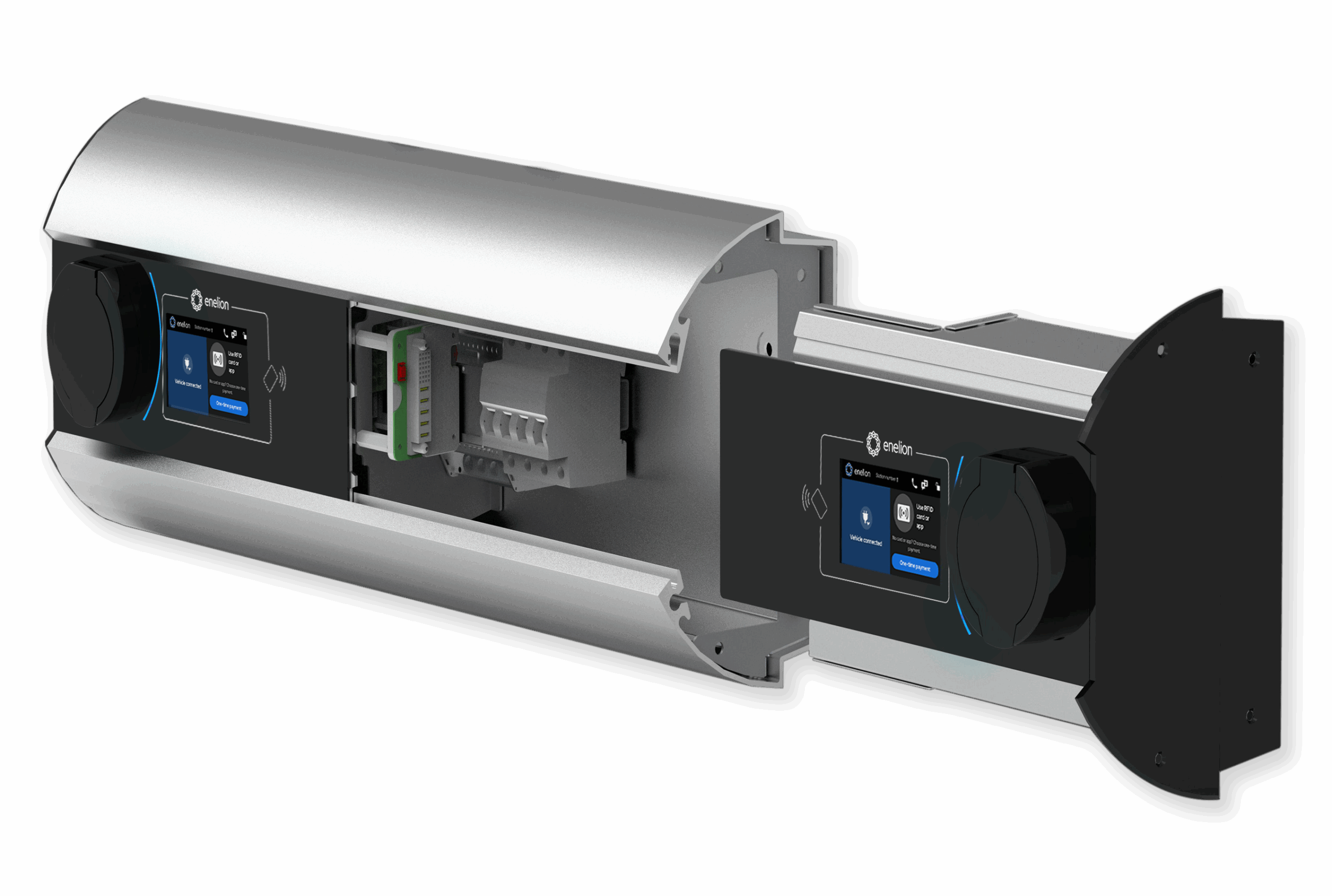

The modular aluminum structure houses two charging modules equipped with color LCD touchscreens, enabling dynamic QR payments.

Wallbox Duo Pro
Distinctive features
Modular
wall-mounted charger
Customization
of color displays
Double
charging station
Low
installation costs

Wallbox Duo Power Pro is a combination of double power and full compliance with the latest regulations (AFIR, ISO 15118, OCPP 1.6/2.0.1). The device has been designed not only to meet current market requirements but also to respond to the needs of the future.

Wallbox Duo Pro

Wallbox Duo Power Pro is the ideal solution for operators building professional charging networks. The device offers full compliance with the latest regulations and seamless integration with CPO backend systems, making it an excellent choice both for new installations and for expanding existing infrastructure.

Wallbox Duo Pro

It is also an excellent choice for housing estate and condominium managers. The modular design, built-in protections, and daisy-chain power supply enable easy and cost-effective installation of multiple charging points tailored to the growing needs of residents.

Wallbox Duo Pro

For owners of commercial stations, hospitality businesses, retail facilities, and corporate fleets, the Wallbox Duo Power Pro provides reliability, easy operation, and convenient user billing. Double power in a single enclosure means more charged vehicles at lower installation costs.

Wallbox Duo Pro

Wallbox Duo Power Pro perfectly meets the needs of investors implementing projects in line with European standards. It is a future-proof, scalable device, fully compliant with AFIR, ensuring investment security for years to come.

Wallbox Duo Pro
Wallbox Duo Pro
Wallbox Duo Pro
Choose a variant

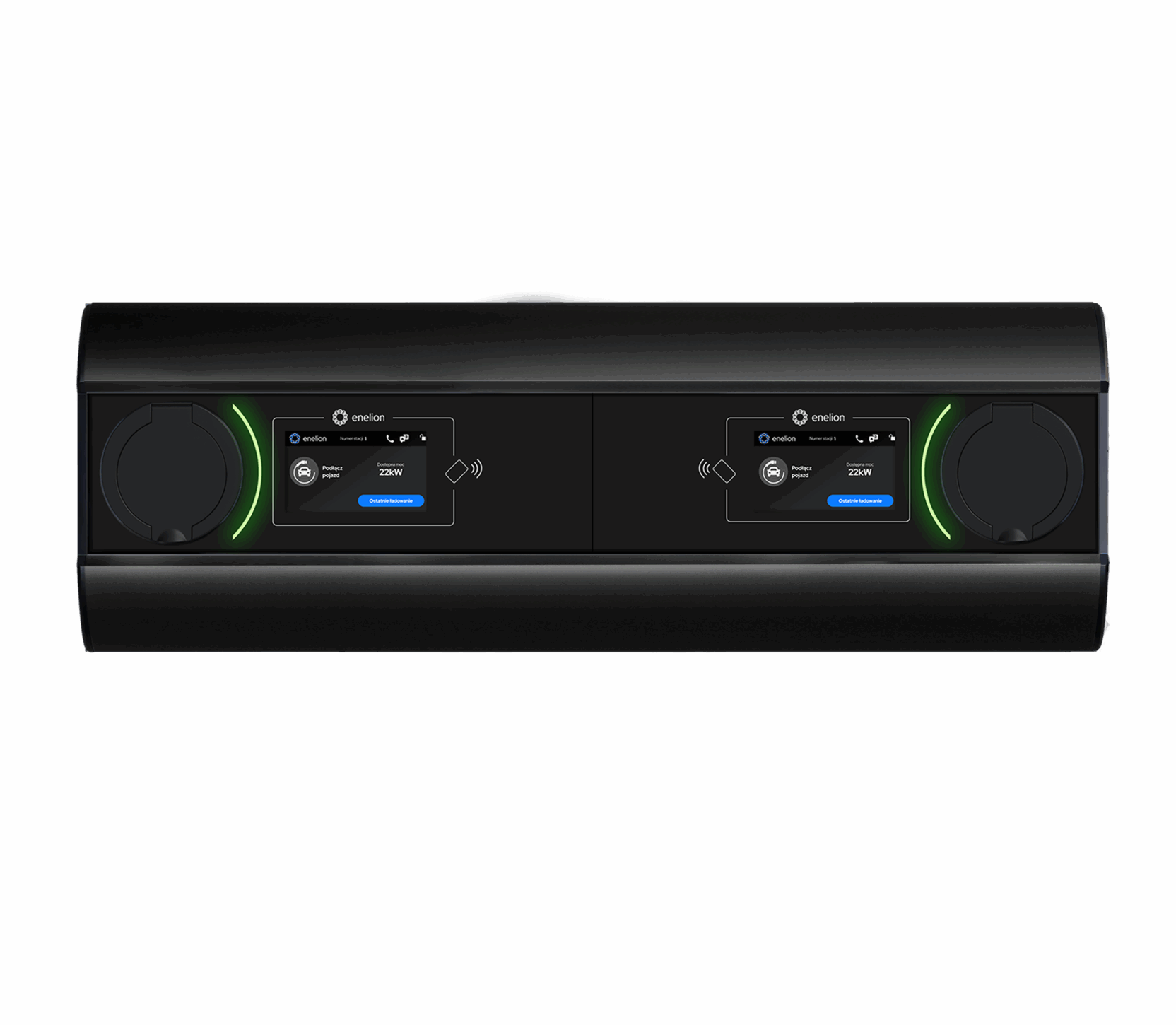

Wallbox Duo Pro
ENELION WALLBOX DUO PRO
Socket

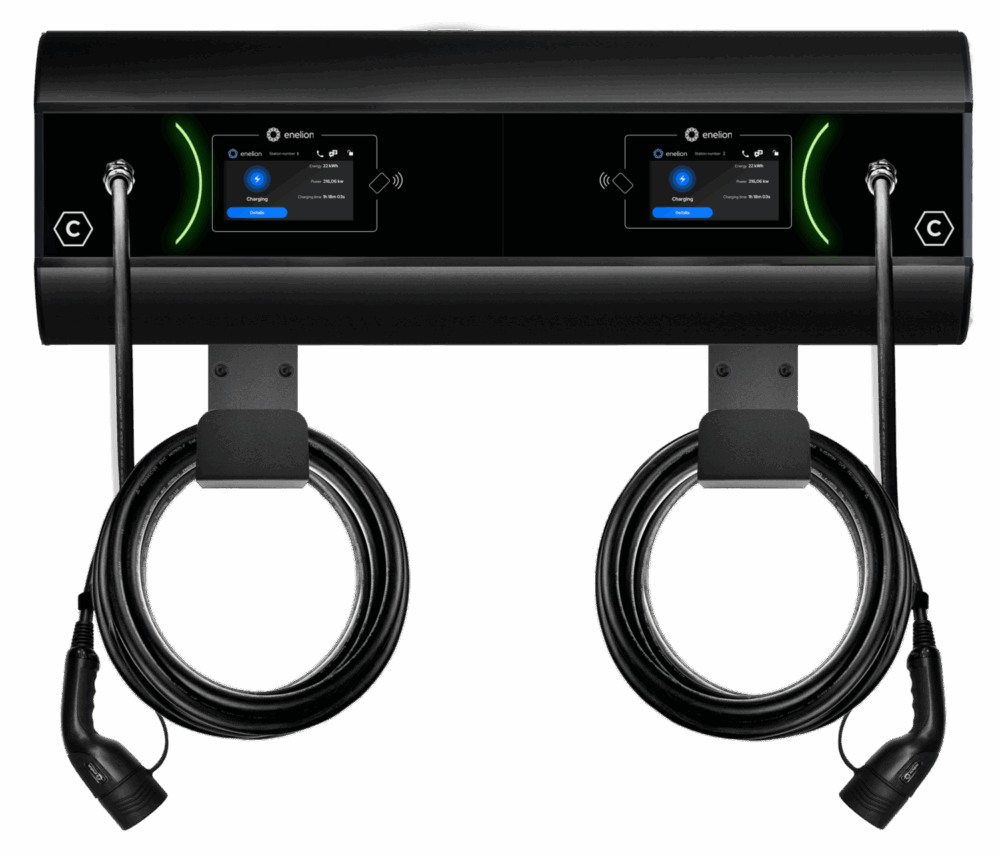

Wallbox Duo Pro
ENELION WALLBOX DUO PRO
Cable
ENELION WALLBOX DUO PRO specification
Basic information
Wallbox Duo Pro
Housing
Durable, corrosion-resistant aluminum housing with powder coating (RAL palette)
Power supply type
AC
Connector type
Type 2 socket
Socket/ plug
2 × socket (Type 2) with lock
Charging current / power
1,4 kW — 22 kW
Height
250 mm
Width
710 mm
Depth
145 mm
Connections
Wallbox Duo Pro
Communication protocols
OCPP 1.6 JSON (ready for OCPP 2.0.1*), CANbus, Modbus
LCD display
4.3”, touch, color
Network device capable
TN-S, TN-C-S, TN-C, TT, IT; 400 V (3 × 230 V)
Parameters
Wallbox Duo Pro
Energy meter
3-phase energy meter with >99% reading accuracy, compatible with a certified MID meter
Degree of impermeability
IP 54
Impact protection degree
IK 10
Residual current protection
RCMB / RCDA / RCDB / RCBO / MCB
Load balancing
Static Load Balancing (offline; FW-based)
Dynamic Load Balancing (+ Enelion EEG 3.0*)
Operating temperature
-25°C / +55°C
Wallbox Duo Pro
ENELION WALLBOX DUO PRO specification
Basic information
Wallbox Duo Pro
Housing
Durable, corrosion-resistant aluminum housing with powder coating (RAL palette)
Power supply type
AC
Connector type
Type 2 socket
Socket lock
Built-in
Charging current / power
1,4 kW — 22 kW
Height
250 mm
Width
710 mm
Depth
145 mm
Connections
Wallbox Duo Pro
Communication protocols
OCPP 1.6 JSON (ready for OCPP 2.0.1*), CANbus, Modbus
Wyswietlacz LCD
4.3”, touch, color
Network device capable
TN-S, TN-C-S, TN-C, TT, IT; 400 V (3 × 230 V)
Parameters
Wallbox Duo Pro
Energy meter MID
3-phase energy meter with >99% reading accuracy, compatible with a certified MID meter
Degree of impermeability
IP 54
Impact protection degree
IK 10
Residual current protection
RCMB / RCDA / RCDB / RCBO / MCB
Load balancing
Static Load Balancing (offline; FW-based)
Dynamic Load Balancing (+ Enelion EEG 3.0*)
Operating temperature
-25°C / +55°C
Wallbox Duo Pro
